2.5.15[Grid Interval] command
|
|
It sets the interval (mm) of the grid of three planes (X-Y, Y-Z, Z-X).
| TOOL |
 |

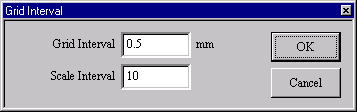

[Grid Interval]Dialog Box
The setting possible range is 0.01 - 1000(mm) and the original value becomes
0.5 mm. Even if it starts this command, the command which was starting
before it is continued. It can set up what every mass of a grid a scale
interval displays a scale.
|
