2.7.15[Wire Parameter] command
|
|
It sets the number of the wire (curved surface) division and a wire (curved
surface) weighting factor.
| TOOL |
 |

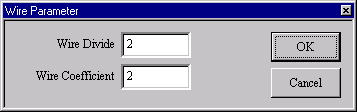

[Wire Parameter]Dialog Box
The setting possible range of the number of the wire (curved surface) division is 1-4 and the original value becomes 2.
The setting possible range of a wire (curved surface) weighting factor is 1.0-3.0 and the original value becomes 2.0. Even if it
starts this command, the command which was starting before it is continued.
The number of the curve division is the number of the division when making
the interval of the Control points a curve, and in case of 1, it makes
one, in case of 2, it makes three and in case of 3, it makes seven vertexes
a curve in the use.
The curve weighting factor is the coefficient of the numerical value calculation when making the interval of the Control
points a curve and the numerical value makes a curve in the form which approached a Control point as much as the big.
Incidentally, the latest parameter is reflected when this is the parameter which is
|
